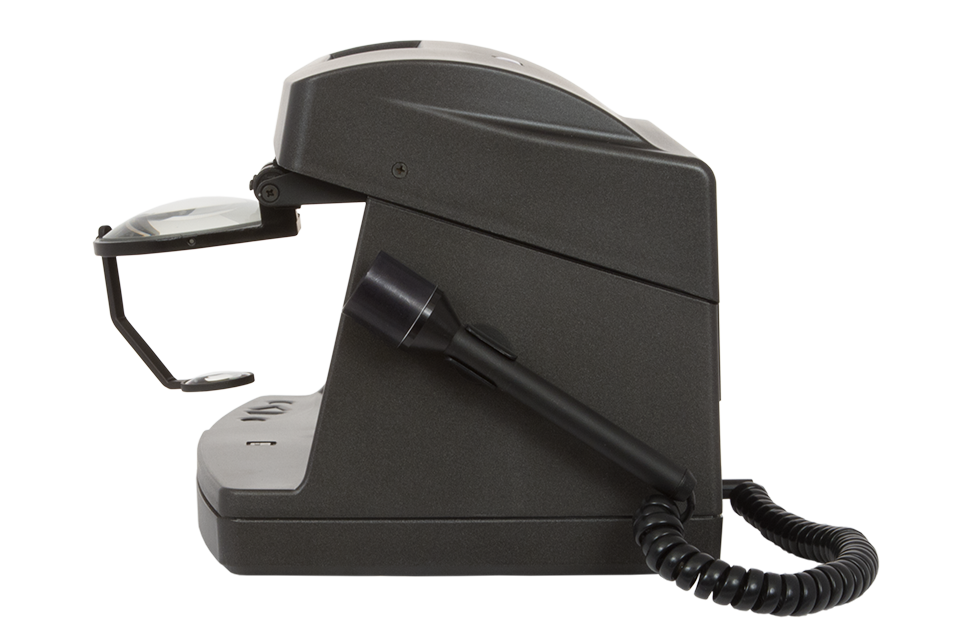

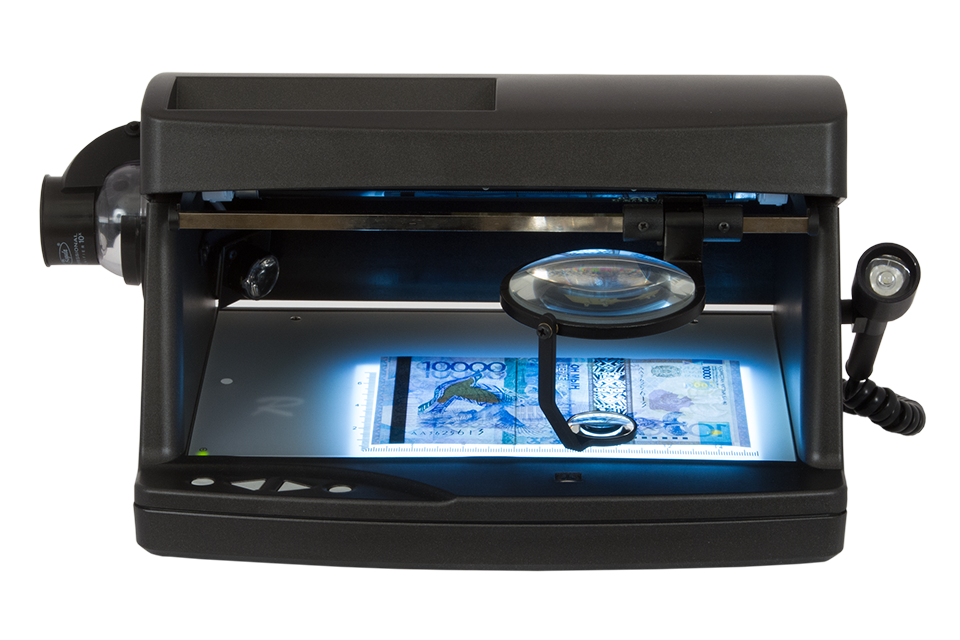

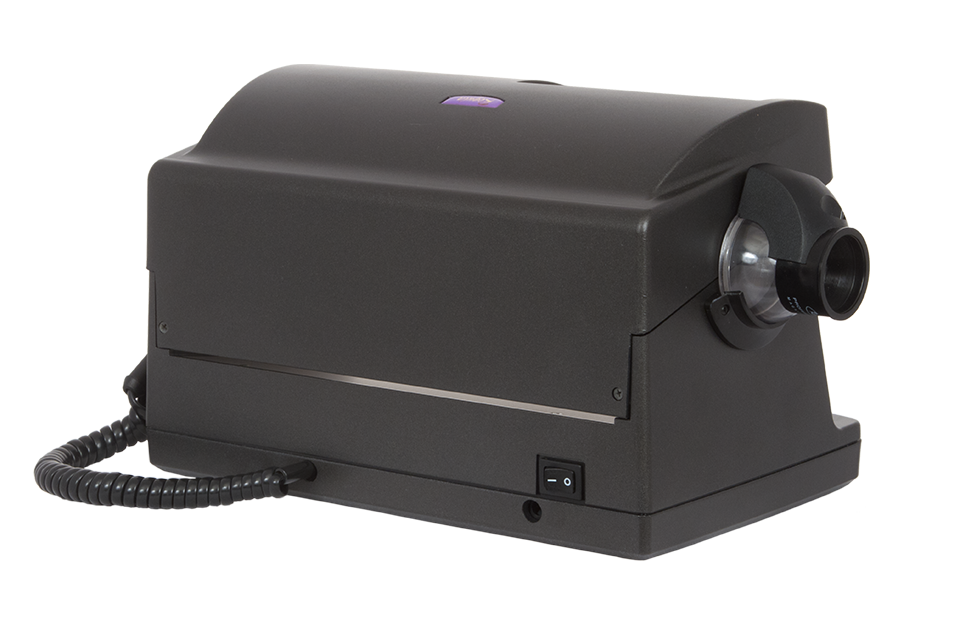

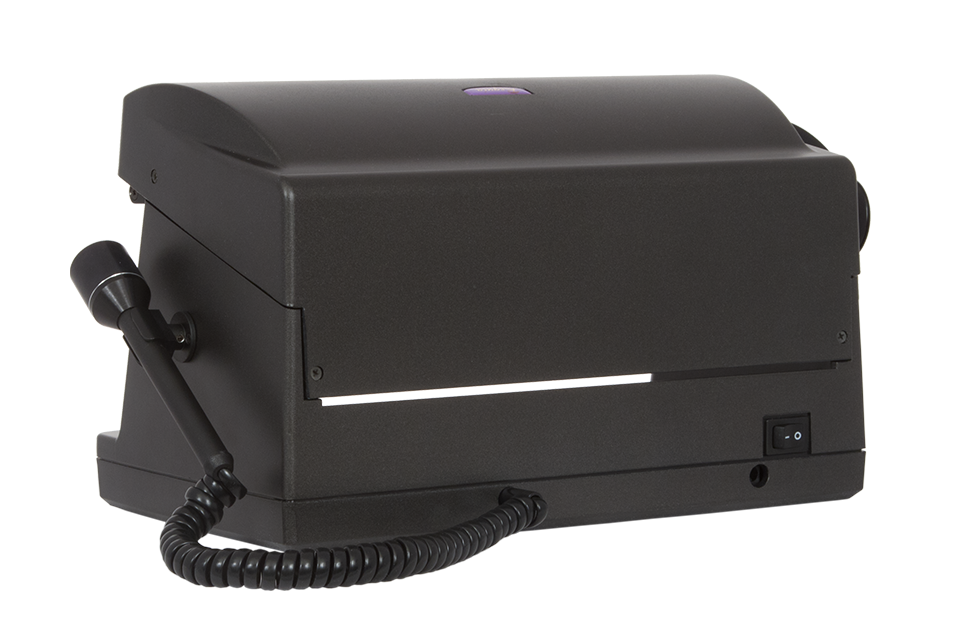

Regula 4103 Document Authenticity Verification Device
The device is designed as a single unit for desktop use in a
plastic body. Light sources for different examination modes are
activated with the help of control buttons located in front of the
object stage. A measuring scale on the light transmitting screen should
be used for measuring sizes of examined objects. Product design provides
a possibility to place a 10x magnifier Regula 100Х and a torch right on the device body.
Functionality
Detection of security features with magnetic properties
Examinations on different levels
protection of the document basis
- paper opacity, watermarks, security fibers, planchetes, security
threads, foil stamping, pole feature, all types of windows, transparent
vanish coating, shadow images, etc.
printing methods
- intaglio: texts, guiloche frames, rosettes and
vignettes, microprinting, latent images and moire patterns, signs for
the visually impaired, blind embossing, colour shifting ink, including
OVI with embossing and latent images, etc.
- letterpress: serial numbers, texts, barcodes, etc.
- offset printing including Orlov and rainbow printing: texts, microprinting, moire patterns, background and anti-copy patterns, etc.
- screen printing: security features with optically variable effects, etc.
- see-through register
- perforation
physicochemical protection
- UV luminescence with different wavelength
complex security features
- special polymer coating of security laminates
- metallized coating
- laser engraving
Additional examination of
- document alterations such as erasure, etching etc.
- traces of signature forgery
- document mechanical defects such as cuts, tears, folds, etc.
Application
Border control and immigration services
Customs authorities
Financial institutions
Other agencies and organizations authorized to check documents
Delivery set
Optical module with 3,5x and 7x magnification for Regula 4103
Magnifier Regula 1001M
Torch for Regula 4103
Optionally:
Magnifiers Regula 1002M; 1003М; 1004М
Lead time: can take up to 80 days
Specifications
Optical module magnification, times:
- main lens — 3,5
- system of two lenses — 7
Maximum document size, mm — 210×300 (А4)
Dimensions (length×width×height), mm — 280×190×180
Weight, kg — 1,9
| Functionality
|
Model
|
|
4103
|
4103.01
|
4103.02
|
4103.03
|
|
Light sources
|
white
|
top
|
+
|
|
|
|
|
oblique
|
+
|
+
|
+
|
+
|
|
bottom
|
+
|
+
|
+
|
+
|
|
external oblique
|
+
|
|
|
|
|
ultraviolet, nm
|
254
|
|
|
+
|
+
|
|
313
|
|
|
|
+
|
|
365
|
+
|
+
|
+
|
+
|
|
Detection of security features with magnetic properties
|
+
|
+
|
+
|
+
|
|
Optical module
|
+
|
|
|
|
Lead time: can take up to 80 days
