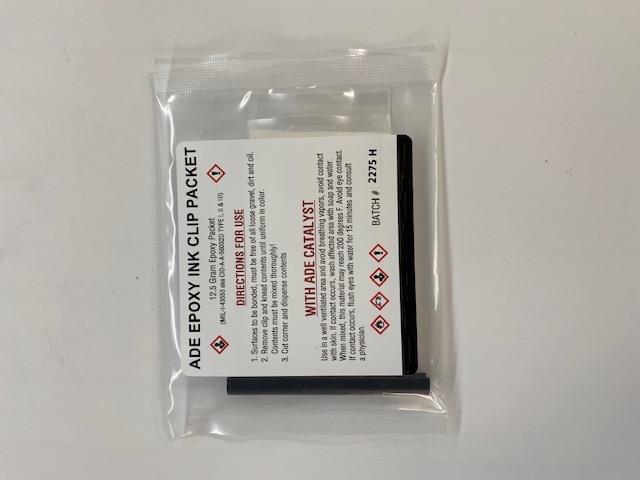

12.5 Gram 2 Part Epoxy Packet - ADE Black
These 12.5 Gram Epoxy Black Ink Packets are ideal for in-field use and consists of two components, pre-measured in a two-part packet and separated by a single clip.
View the epoxy ink packet instructions here;
1. The clip is removed allowing the two sides to migrate.
2. The two components are mixed thoroughly by kneading and dispensed directly from the packet.
SURFACES: ceramics, phenolic, polyesters, melamine, silicone, ferrous and non-ferrous metals, glass, electronic parts DRYING TIME: dries to touch within 2 - 3 hours. Adding heat shortens curing time. Max. adhesion and chemical resistance takes 7 - 10 days. Requires addition of catalyst immediately before use.
The following are starting point guidelines to
determine temperature and times to achieve a
crosslinked ink film.
DRYING TIME - Room Temperature: ADE Series dries to touch in
approximately 30-60 minutes and cures in 5-7
days.
Force-Drying/Curing: Baking ADE prints produces
the hardest, most durable finish. Bake most ADE printed colors for approximately
10 minutes at a maximum range of 300°-325° F
(150°-164°C). Temperatures above 325°F (164°C)
may result in discoloration.
CHARACTERISTICS: a 2-component epoxy ink developed to be the most permanent ink available for use with a wide range of difficult to mark substrates. It's the most resistant ink available against solvents, chemicals and hydrocarbons, and will withstand temperatures over 600 degrees F. Ink is considered to be conductive.
Meets Mil Spec: CID A-A-56032D Types I & III. Formerly: MIL-I-43553b.
COLORS: Black - meets FED-STD 595-27041
COLOR SYSTEM: Pigment.
SOLVENT SYSTEM: Glycol Either.
Let us know if you need the Glass Plate, Ink Roller / Brayer and the type of marking device needed to complete your order.
