Model 131 Bench Top Press, Price Quote Only
Operation

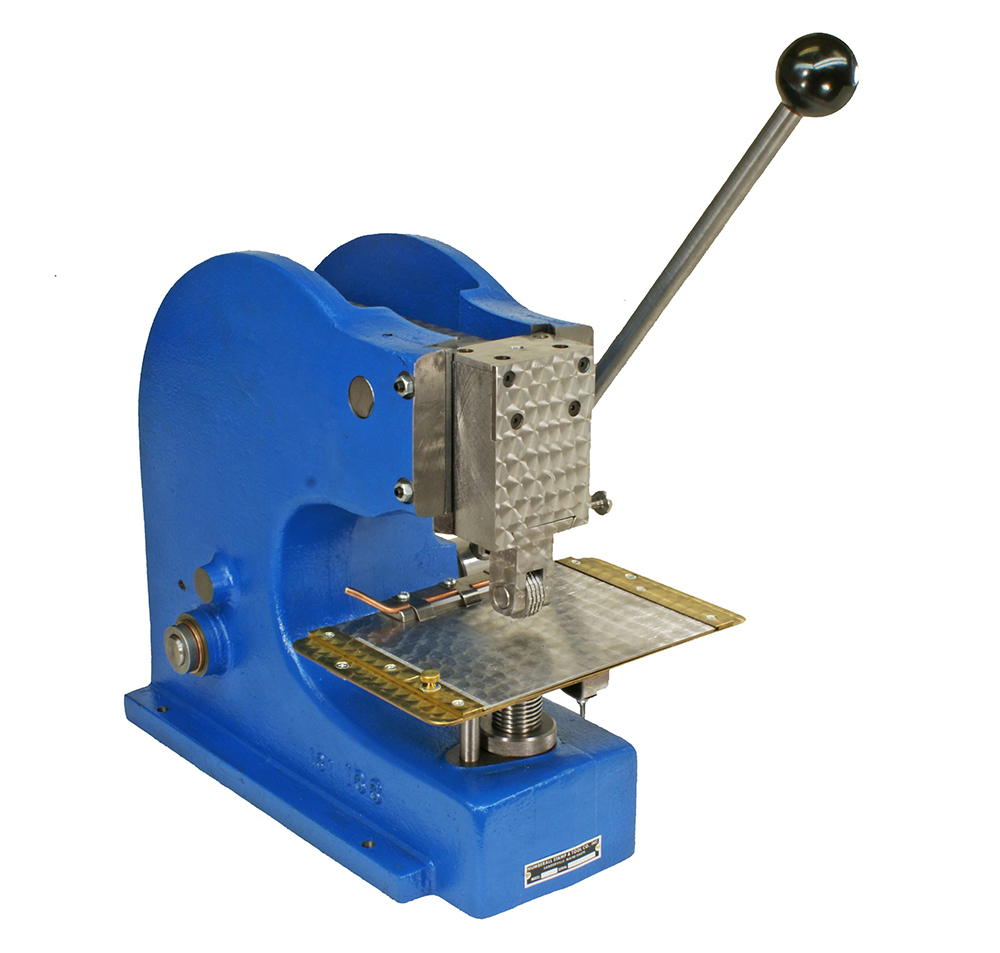

The Model 131 is hand-operated. By manually pulling the lever, a cam is rotated to create the stamping force. The table would be adjusted so that when the cam rotates to high cam position, minimal effort is required to mark the part.
An acme screw and nut, attached below the cast table, regulate depth of stamping. A separate guide rod helps align the table. By turning the acme nut you can raise or lower the table for depth adjustment.
The presses feature a short safe 3/16” stroke, negating the need for external guarding. Construction & Parts
The Models 131, 131A and 133 use the same base casting. These presses are husky, cast iron "C" frames for distortion-free stamping with a smooth, static non-impact marking force. No die cast parts are used. Many imported presses are made using round column construction with a spring release marking force, which may result in a harsh impact shock. The large quick-change dovetail ram evenly distributes the marking force across the marking device frame, with minimal part and marking device stress. Clearances and pressures are the same for each model.
Compatibility
A variety of marking devices can be installed in the presses, depending on part thickness and character capacity requirements.
|
Maximum Part Thickness Chart
|
| Depicts the maximum allowable part thickness, based on the marking device and character size. The total clearance under the ram is 3-3/4”, but can be modified for more; contact the factory for availability and pricing. |
|
Marking Device
|
Maximum
Opening
|
|
Model 23P (up to 5/32” character)
|
1-5/8”
|
|
Model 23P (3/16” to 1/4”character)
|
1-1/4”
|
|
Model 70P (up to 1/8” character)
|
1-9/16”
|
|
Model 70P (3/16” to 1/4” character)
|
1”
|
|
Model 50P (up to 1/8” characters)
|
1-9/16”
|
|
Model 50P (5/32” and 3/16” character)
|
1/2”
|
Note: For the Maximum Part Thickness Chart, any Numbering Machine or Type Holder not listed cannot be used in the above presses.
|
|
|
|
Character Capacity Chart
|
| Depicts the maximum number of characters that can be stamped during each impression. These recommendations can be exceeded in many cases. The hardness of a material will affect stamping results. |
|
Character
Size
|
Steel
RC 30
|
Mild
Steel
|
Soft
Brass
|
Aluminum
1100 H26
|
|
1/4
|
3
|
5
|
7
|
12
|
|
3/16
|
4
|
7
|
11
|
16
|
|
5/32
|
6
|
8
|
17
|
36
|
|
1/8
|
9
|
12
|
25
|
48
|
|
3/32
|
10
|
13
|
30
|
63
|
|
1/16
|
12
|
20
|
48
|
96
|
Note: The Character Capacity Chart is based upon the maximum number of characters for a legible impression (.002”-.003” depth).
|
|
Options
- Tripping Attachment (for use with the Model 50P only)
- Adjustable Table (for in-out and left-right movement of table)
- Filter, Lubricator, Regulator, & Gauge (FLR&G) (for Model 131A only)
- Model 113 Strip Holder
- Universal Key Nest
- Custom Nest
Product Specs
|
Hand
|
Air
|
|
Bench Space Depth
|
24" |
24" |
|
Bench Space Width
|
14" |
12" |
|
Bench Space Height
|
27" |
17-1/2" |
|
Weight
|
125 lbs. |
135 lbs. |
|
Throat Depth
|
6" |
6" |
|
Vertical Table Adjustment
|
2" |
2" |
|
Clearance between ram and table
(when adjusted down)
|
3-3/4" |
3-3/4" |
Any questions call 714-979-1405 or email us at Sales@RubberStampsRus.com
