Model 22 Steel Type Holder, Call factory for quotation

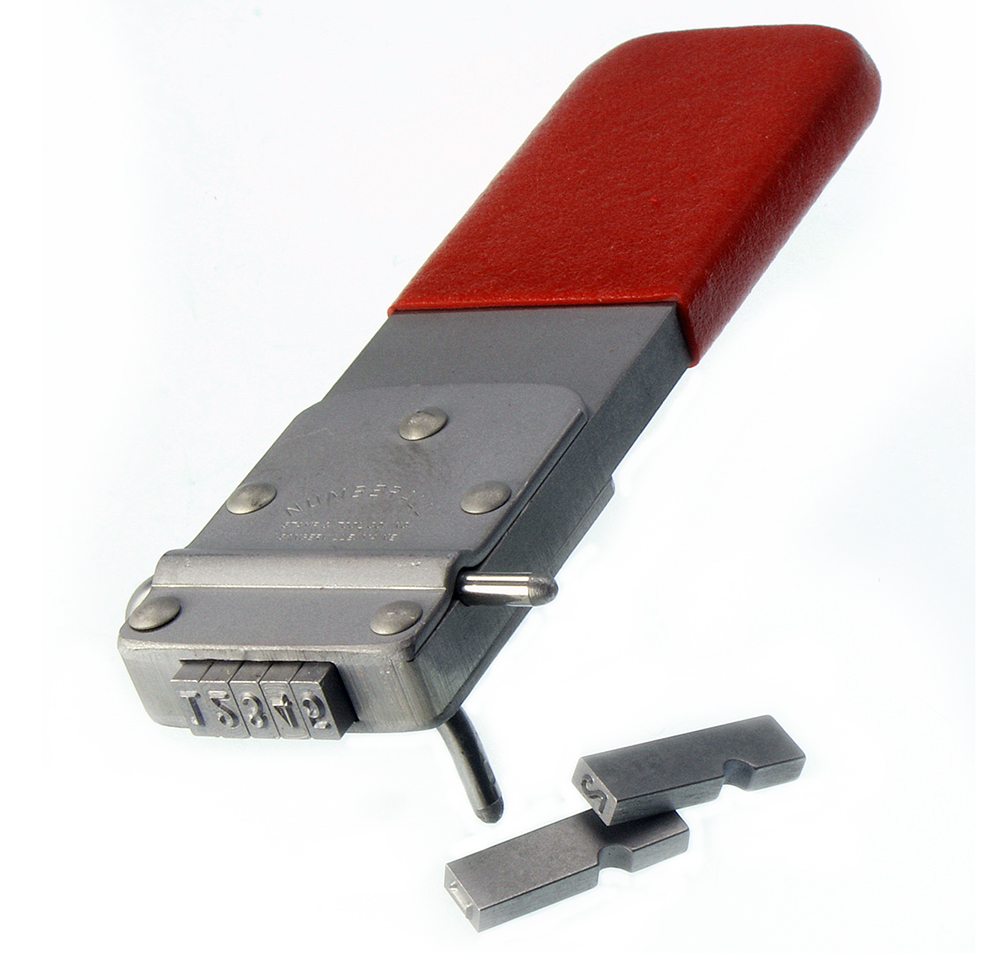

Model 22 is an economical holder for all light-duty hand-held marking requirements. Hitt Marking Devices standard super quality steel type, up to a maximum of 5/32" high characters, may be used.
- Economical
- Ideal for light-duty hand-held marking requirements
- Recommended for use in stamping brass, aluminum, plastic, mild steel, etc.
Operation
A removable pin holds the notched type securely in place. Because the type is notched, it cannot be inserted the wrong way. The pin is easily removed for quick character changes. Refer to the following chart for capacities. Blank spacers are required to fill any voids.
Construction & Parts
The Model 22 is made of heat-treated alloy steel to resist chipping. The shank is plastic coated to absorb shock during the marking operation, when it is struck with a hammer blow.
Character Size Specifications
|
Character Size
|
Dimensions of Type
|
Capacity
|
|
Slot Size 5/8"
|
Slot Size 3/4"
|
| 1/32", 3/64", 1/16" |
1/16" |
10 |
12 |
| 3/32" |
3/32" x 1/4" x 7/8" with notch |
61 |
8 |
| 1/8" |
1/8" x 1/4" x 7/8" with notch |
5 |
6 |
| 5/32" |
5/32" x 1/4" x 7/8" with notch |
4 |
42 |
1 Requires 1/16" spacer
2 Requires 1/8" spacer Consult our Length of Impression Gauge, to determine character size required and associated Length of Impression.
Any questions call 714-979-1405 or email us at Sales@RubberStampsRus.com
