Custom and Stock Stamping Devices

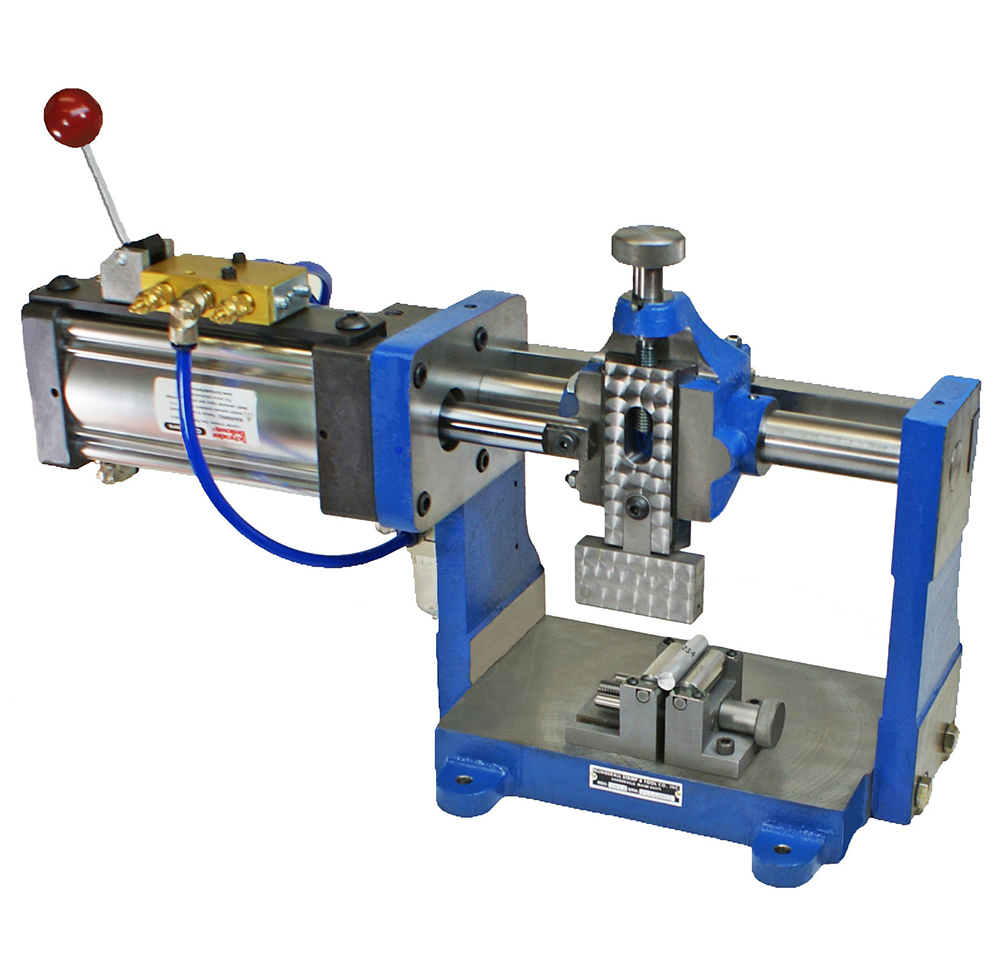

An adjustment knob on the sliding head dovetail provides positive marking depth adjustment. A special rectangular shank is required to adapt the marking device to the sliding head. When setting up, place a part in the fixture, move the sliding head over the part. Turn the adjustment knob until the marking device touches the part. Move the sliding head to one side and turn the adjustment knob 1/4 of a turn. Mark a part and check for stamping depth. Move the adjustment knob in or out for proper stamping depth.

Brass gibs on the dovetail and sliding head can be adjusted for wear and also to tilt the marking device to correct for any part taper.

Compatibility

Other devices that are compatible* with the Model 301:

• Model 23P Type Holder (with multiple lines, if required)**
• Model 70P Non-Automatic Numbering Head
• Model 50P Automatic Numbering Head
• Special Dies

Generally with a Model 23P Type Holder and our standard adjustable holding fixture, you can mark parts from 3/8” to 1-5/8” diameter. We offer oversize endplates for more clearance, by requesting the Oversize Roll Marking Machine. The first oversize endplates will give an additional 2-1/8” of clearance, the second over size an additional 4-1/4” of clearance.

*Compatibility is based on character size, number of lines and type of material.

**It is best to obtain sample stampings for multiple line applications.

Options

• Adjustable Holding Fixture
• 1st and 2nd Oversize Endplates
• Custom Fixtures*

*Hitt Marking Devicesl has designed custom fixtures to stamp the edges of coins and medallions without marring the surfaces. We also have fixtures with interchangeable arbors for stamping hollow parts or rings. For parts with varying part diameters or stepped parts, our standard adjustable holding fixture rollers can be modified to hold the part securely when marking.

Product Specs

NOTE: Operating Handle drives the sliding head with marking device attached.
