Custom and Stock Stamping Devices

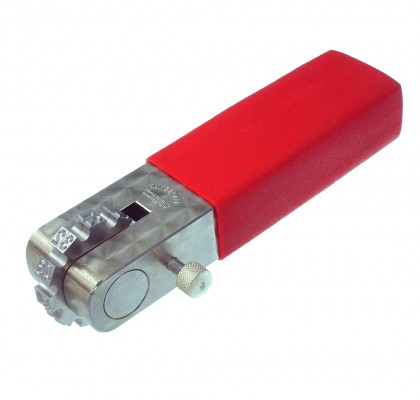

The Model 60 offers simplified construction and low cost while delivering performance and durability. It performs similar to our Model 70, but character changes are accomplished in a different manner.

• Low cost
• Light and compact, yet durable
• Ideal for marking products such as keys, nameplates and parts constructed of mild steel or comparable materials

To set a desired character sequence remove the pin to free all the wheels. Push the pin back into the frame until it touches the first wheel, set first wheel to desired character, push pin through first wheel to lock in place. Repeat this same action for all wheels until the proper character sequence is obtained. Push the lock pin completely through the other side of the frame until properly seated. The pin may be inserted into the frame from either direction. With a little practice, any character sequence can be set quickly and easily.

The Model 60 is equipped with a vinyl coated hand shank which absorbs vibration and shock occurring during the marking operation when the shank is struck with a hammer blow.

A single tapered locking pin, thrust through the frame and in the notches of the wheels, holds the wheels in alignment.

The wheels are meticulously engraved for accuracy, strength and alignment. Made of high-grade alloy tool steel, the wheels are precision heat-treated for severe usage. The hand shanks are constructed of high-grade heat-treated alloy steel and resist chipping and mushrooming.

Press style shanks are also available. Consult factory for pricing and availability.
