Steel Rotary Wheel, Call factory for quote
Eliminate searching for up to 40 individual hand stamps. By simply rotating the character wheel with your thumb and forefinger, characters can be changed quickly and precisely. For ease of arrangement and orientation, the wheels are indexed with the character configuration on the side of the wheel facing the user. Rigidly constructed and well balanced, the single wheel rotary stamps provide an efficient means of stamping individual characters.

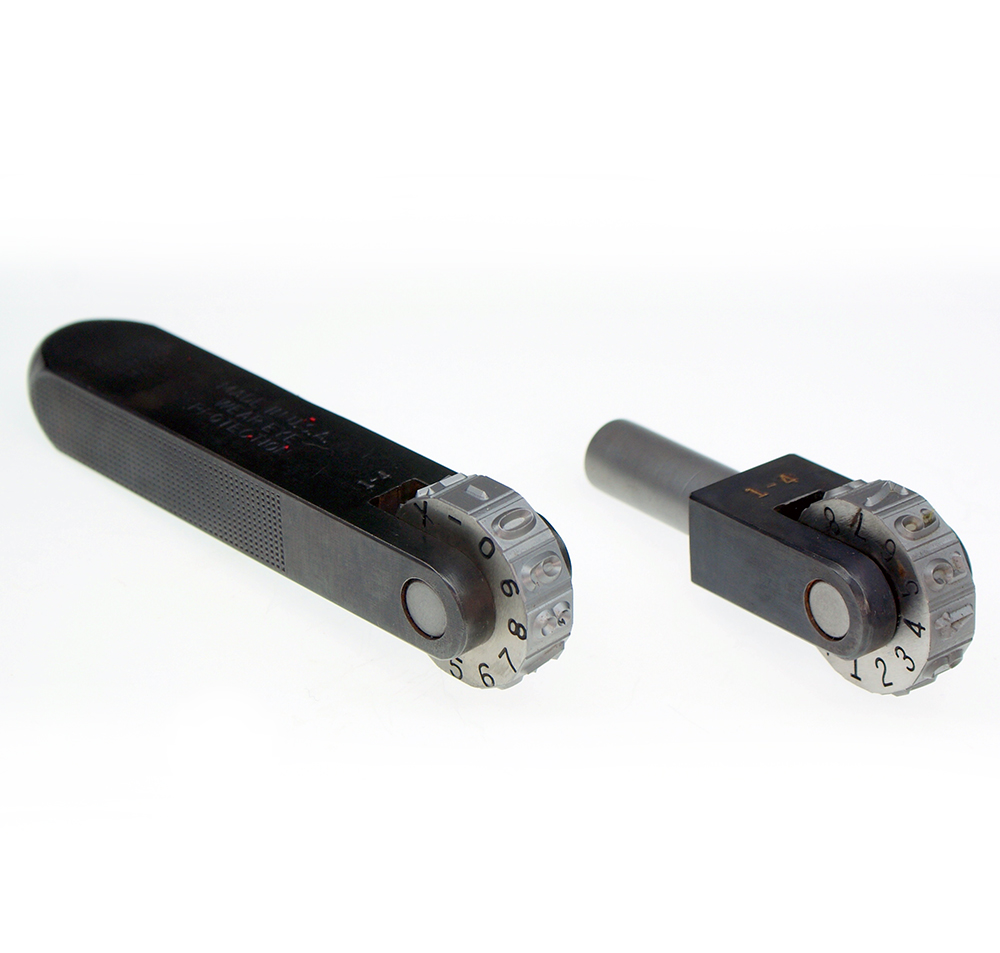

The Rotary Stamp is available with either a hand or press style shank, as shown at right. Consult factory for pricing and availability.
Construction & Parts
Careful inspection and testing throughout the manufacturing process insure that each rotary stamp meets our high quality standards. By using the best high quality heat-treated alloy tool steel, the rotary stamps provide maximum life under severe usage.
Replacement wheels and parts are readily available for years of service. Special character arrangements and styles are available upon request. Note: Character wheels of different sizes cannot be used in the same shank.
Individual, Letter Sets or Deluxe Sets
Single wheel rotary stamps are available individually or in Letter Sets in plastic pouches, or as a Deluxe Set packed in a convenient wooden box. The Letter Set contains two individual letter hand stamps. The Deluxe Single Wheel Rotary Set contains three individual hand stamps, for a total of 40 characters.
Rotary Date Stamps
A Rotary Date Stamp is also available for stamping a month and year code.
Character Wheel Sets
Size
|
Figure Stamp
1 thru 0, X, and -
|
Letter Stamp
A thru M and &
|
Letter Stamp
N thru Z and -
|
Letter Set
A thru M and &
N thru Z and -
|
Deluxe Set
Includes Figure and Letter Sets
|
Shank Size
|
1/16" |
RS-116-F |
RS-116-AM |
RS-116-NZ |
RS-116-AZ |
RS-116-D |
1/2" x 1/2" x 3 7/16" |
3/32" |
RS-332-F |
RS-332-AM |
RS-332-NZ |
RS-332-AZ |
RS-332-D |
1/2" x 1/2" x 3 7/16" |
1/8" |
RS-18-F |
RS-18-AM |
RS-18-NZ |
RS-18-AZ |
RS-18-D |
9/16" x 9/16" x 3 7/16" |
5/32" |
RS-532-F |
RS-532-AM |
RS-532-NZ |
RS-532-AZ |
RS-532-D |
9/16" x 9/16" x 3 7/16" |
3/16" |
RS-316-F |
RS-316-AM |
RS-316-NZ |
RS-316-AZ |
RS-316-D |
9/16" x 9/16" x 3 7/16" |
1/4" |
RS-14-F |
RS-14-AM |
RS-14-NZ |
RS-14-AZ |
RS-14-D |
7/8" x 5/8" x 4 1/4" |
5/16" |
RS-516-F |
RS-516-AM |
RS-516-NZ |
RS-516-AZ |
RS-516-D |
3/4" x 1 1/8" x 5 1/4" |
3/8" |
RS-38-F |
RS-38-AM |
RS-38-NZ |
RS-38-AZ |
RS-38-D |
1 1/8" x 1" x 5 1/4" |
Any questions call 714-979-1405 or email us at Sales@RubberStampsRus.com
